ORIX LINEA Bar Diffused

Product Description

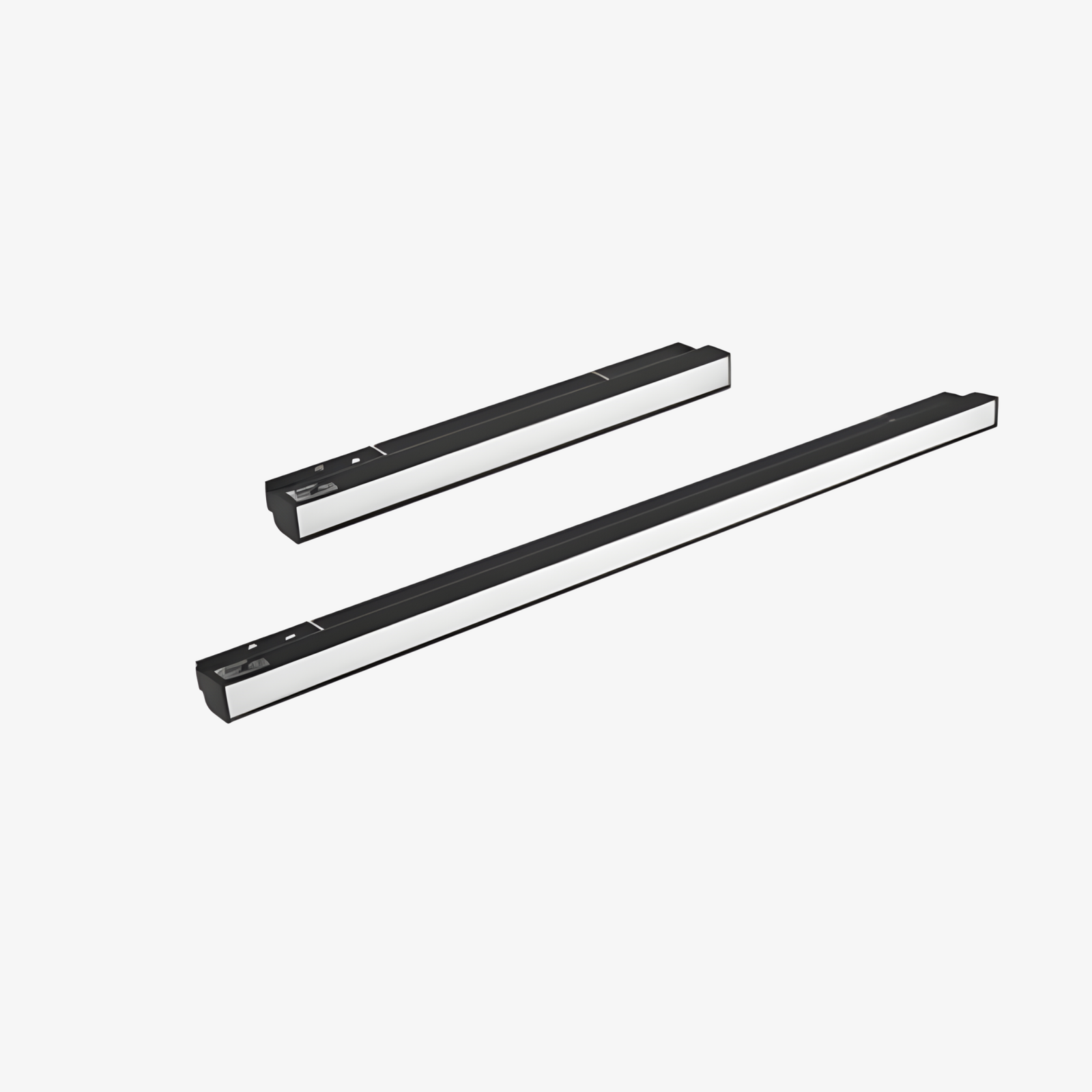

The ORIX LINEA Bar Diffused is a slim linear lighting module designed for clean, continuous illumination. Available in 10W, 18W, and 24W, it uses a full-length diffuser to create a broad 120° beam with an efficacy of 80 lm/W.

LINEA Bar Diffused with 120° Light Distribution

The 120° beam angle spreads light evenly across a wide area rather than creating concentrated accent illumination. Therefore, the LINEA Bar Diffused works well for general lighting, shelving, retail displays, residential interiors, offices, and hospitality spaces.

Its continuous diffuser produces a smooth illuminated line across the front of the fixture and keeps individual LED points out of direct view.

10W, 18W and 24W LINEA Bar Diffused

Three power options allow the fixture to suit different lighting layouts:

• 10W – compact linear applications
• 18W – medium-length lighting arrangements
• 24W – longer linear installations

All versions offer approximately 80 lm/W luminous efficacy.

Designers can also combine different lengths within the same project to maintain a consistent visual language while adapting the light output to each area.

Slim Aluminum Profile

The LINEA Bar Diffused uses an aluminum profile with a clean rectangular form. Its black housing contrasts with the white diffuser and creates a discreet architectural appearance.

In addition, the slim profile allows several modules to form a repeated linear arrangement without making the ceiling composition visually heavy.

LINEA Bar Diffused Color Temperature Options

Four color temperatures are available:

3000K – warm white
3500K – soft neutral white
4000K – neutral white
6000K – cool white

This range allows the same fixture family to adapt to residential, hospitality, retail, and commercial lighting concepts.

Technical Specifications
