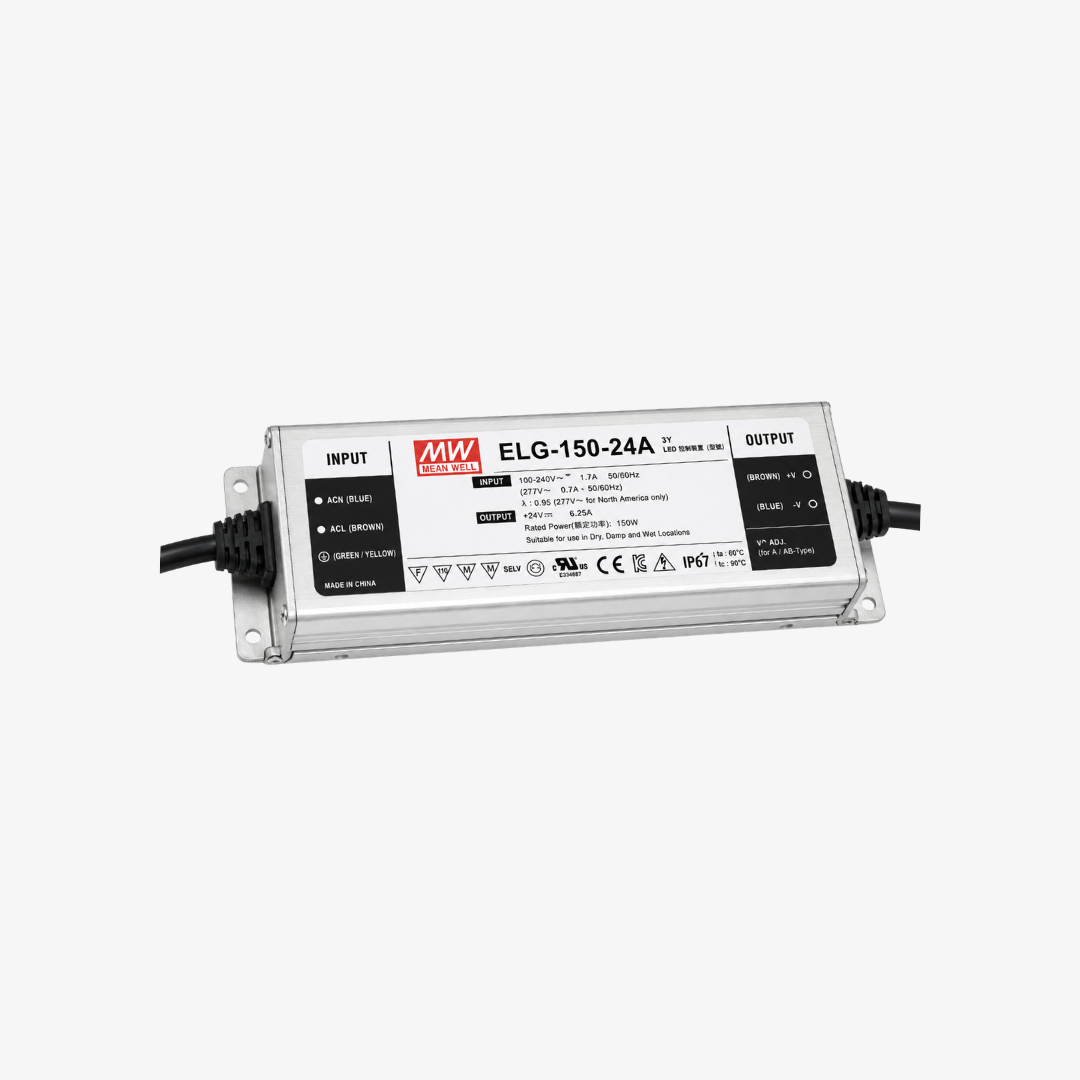

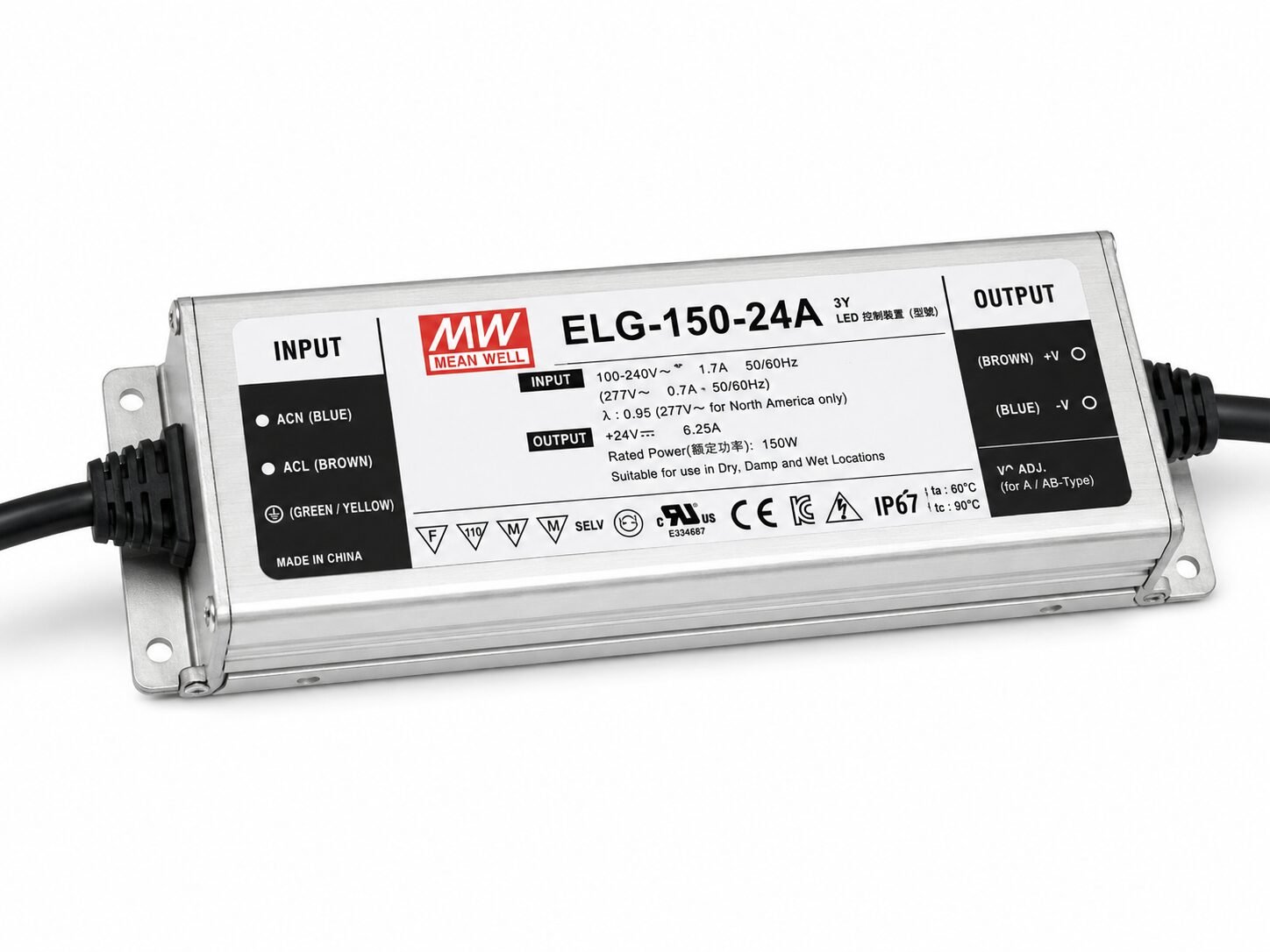

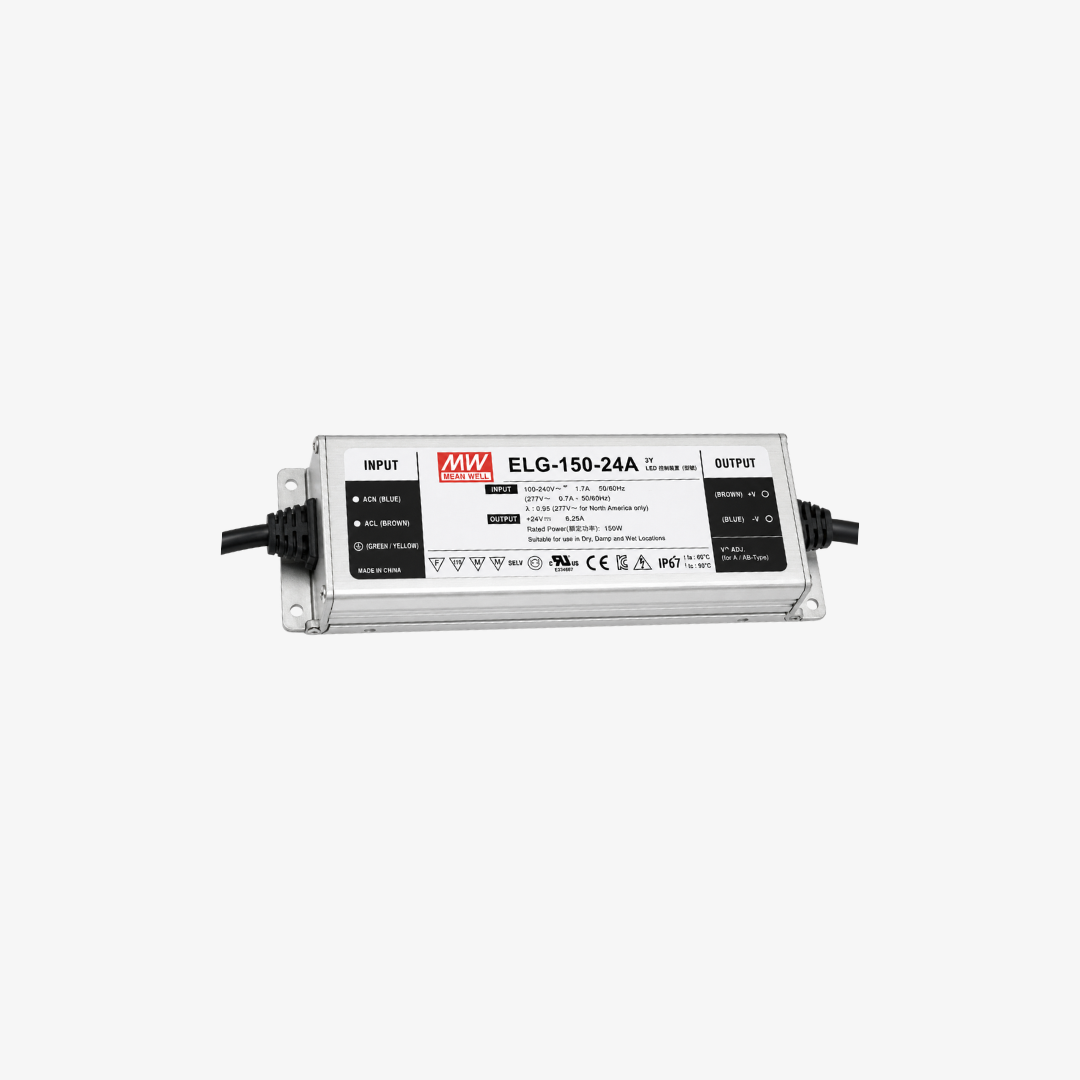

The MEAN WELL ELG-150-24A LED Driver is a professional 24V power supply for architectural, commercial, and outdoor LED lighting systems. It offers up to 150W output power, 24V DC output, and a maximum current of 6.25A.
In addition, the driver operates from a wide 100–305VAC input range, making it suitable for lighting projects with demanding mains conditions. The ELG-150 series combines constant-voltage and constant-current operation in a rugged metal housing.
Adjustable Output
The A-version includes built-in adjustment for both output voltage and current.
Installers can adjust the output voltage around the rated 24V level, while the current adjustment range runs from approximately 3.2A to 6.25A. Therefore, the driver can match different 24V LED loads more precisely than a fixed-output model.
The constant-current operating region covers 12–24V, while the adjustable output-voltage range is approximately 21.6–26.4V DC.
Metal Housing for Professional Installation
A robust metal enclosure protects the electronics and supports passive heat dissipation.
The body measures approximately 219 × 63 × 35.5 mm, which allows integration into lighting housings, electrical cabinets, and accessible service areas.
The ELG-150-24A carries an IP65 rating, making it suitable for protected indoor and outdoor lighting installations.
Electrical Performance
The driver uses active Power Factor Correction (PFC) and reaches approximately 89% efficiency on the 24V model. Moreover, its fanless design removes moving parts and keeps operation quiet.
Built-in protection covers:
- Short circuit
- Over current
- Over voltage
- Over temperature
The driver also consumes less than 0.5W at no load or standby.
Suitable Applications
The MEAN WELL ELG-150-24A LED Driver works well with professional 24V lighting systems such as:
- Architectural linear lighting
- LED strips
- Façade lighting
- Landscape lighting
- Floodlighting
- Commercial lighting
- Outdoor luminaires
- Signage
MEAN WELL lists architectural lighting, bay lighting, street lighting, and floodlighting among the ELG-150 series applications.
Technical Specifications
| Specification | ELG-150-24A |
|---|---|
| Output Power | 150W |
| Rated Output Voltage | 24V DC |
| Maximum Output Current | 6.25A |
| Adjustable Current Range | 3.2–6.25A |
| Adjustable Voltage Range | 21.6–26.4V DC |
| Constant Current Region | 12–24V |
| Input Voltage | 100–305VAC |
| Efficiency | Approx. 89% |
| Power Factor Correction | Active PFC |
| Housing | Metal |
| IP Rating | IP65 |
| Cooling | Fanless / Free-air convection |
| Dimensions | 219 × 63 × 35.5 mm |
| Protection | Short Circuit / Over Current / Over Voltage / Over Temperature |
| Adjustment | Built-in voltage and current potentiometers |
