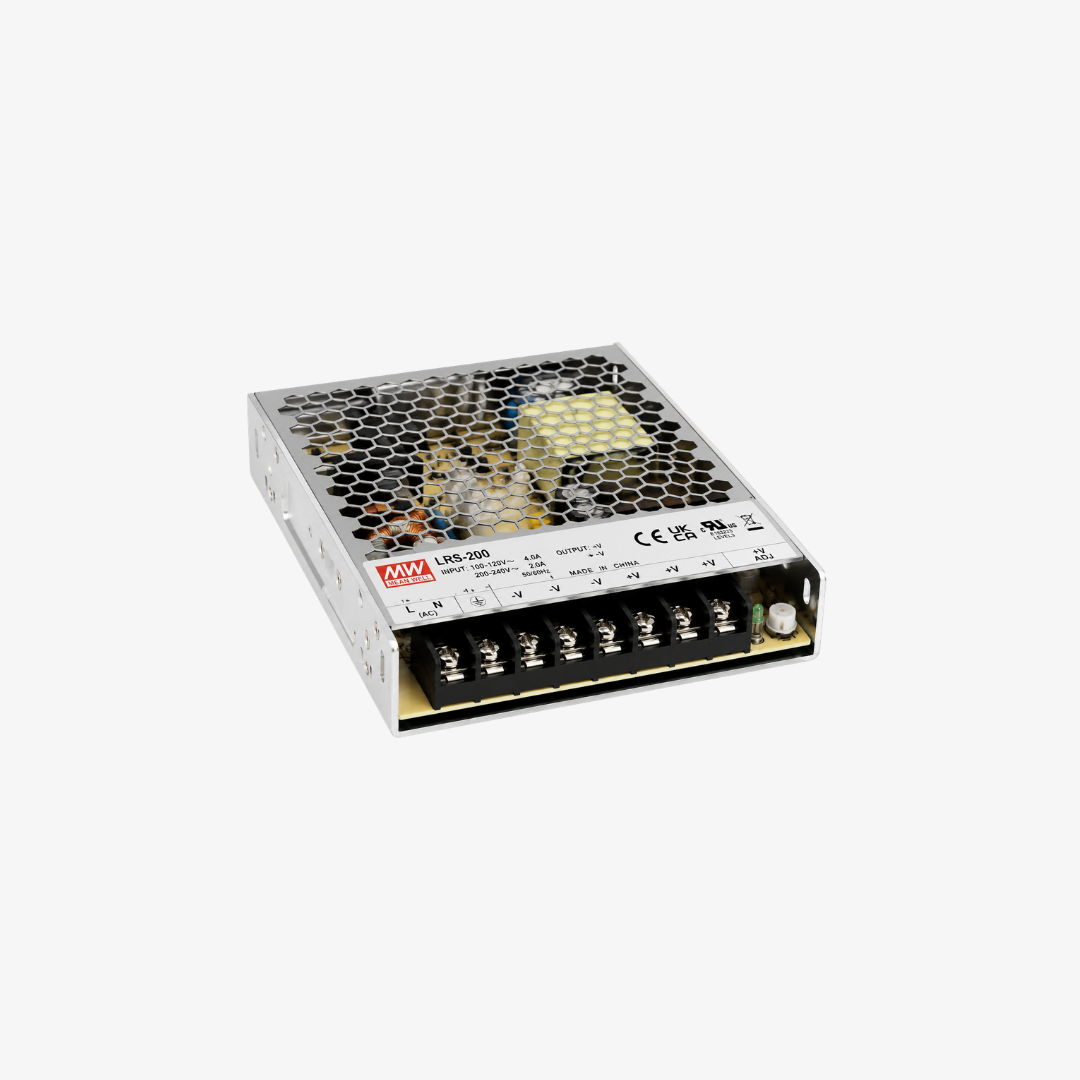

MEAN WELL LRS-200 Power Supply

LRS-200 Power Supply Overview

The LRS-200 Power Supply from MEAN WELL delivers stable 24V DC power for industrial automation, control panels, electrical machinery and compatible low-voltage equipment. The LRS-200-24 model supplies up to 8.8A rated current and 211.2W output power, making it a dependable choice for systems that require higher power capacity in a compact enclosure.

Moreover, its low-profile design helps installers save space inside electrical cabinets, machinery and equipment housings. The ventilated metal case also supports efficient heat dissipation during continuous operation.

High-Capacity 24V DC Output

The LRS-200-24 provides a regulated 24V DC output for compatible electrical and electronic equipment. In addition, installers can adjust the voltage from approximately 21.6V to 28.8V by using the built-in adjustment control.

This adjustable range can help compensate for minor cable voltage drops or meet specific equipment requirements. However, the selected voltage must remain within the approved operating range of every connected device.

The 24V model reaches approximately 89.5% typical efficiency. Therefore, it limits unnecessary energy loss and heat during normal operation. Its no-load power consumption also remains below 0.75W, which supports efficient system design.

Compact Fanless Construction

The power supply measures approximately 215 × 115 × 30mm. As a result, its 1U low-profile construction fits easily inside control panels and protected equipment enclosures.

The LRS-200 Power Supply uses free-air convection instead of a mechanical cooling fan. Consequently, it operates quietly and eliminates fan-related maintenance. However, installers must provide enough open space around the ventilation openings to maintain proper airflow.

Because the metal mesh enclosure is not waterproof, the unit should remain inside a suitable indoor cabinet or protected technical enclosure.

LRS-200 Power Supply Protection

MEAN WELL equips the LRS-200 series with protection against:

• Short circuits
• Overload conditions
• Overvoltage
• Excessive operating temperature

These protection functions help safeguard the power supply and connected equipment during abnormal electrical or thermal conditions. Furthermore, the 24V version uses a recovery method that allows normal operation to resume after the installer removes the fault.

The series also withstands vibration testing up to 5G and supports operating altitudes of up to 5,000 metres, subject to the manufacturer’s derating requirements.

Recommended Applications

The MEAN WELL LRS-200-24 suits a wide range of professional applications, including:

• Industrial automation machinery
• Electrical control systems
• Mechanical and electrical equipment
• Electronic instruments
• Security and access-control systems
• Display and signage equipment
• Monitoring systems
• Communication equipment
• Compatible 24V LED systems
• Commercial low-voltage devices

For lighting installations, designers should verify local harmonic-current, EMC and final-equipment compliance requirements before specifying the unit. The official datasheet includes particular usage conditions for lighting systems and certain equipment connected to public mains networks.

Input Selection and Installation

The LRS-200 series uses a selectable input range of 90–132V AC or 180–264V AC. Therefore, the installer must correctly set the input-voltage selector before connecting the unit to the mains supply. The product can also accept 240–370V DC when the selector remains in the 230V position.

First, confirm the local supply voltage and set the selector correctly. Next, calculate the total current and wattage of all connected devices. The combined load must remain within the rated 8.8A and 211.2W limits.

Then, connect live, neutral and protective earth according to the terminal markings. After that, connect the positive and negative outputs with the correct polarity. Finally, secure the power supply firmly and maintain sufficient ventilation around the enclosure.

Technical Specifications

These specifications come from the current official MEAN WELL LRS-200 documentation.

Why Choose the LRS-200 Power Supply?

The LRS-200 Power Supply combines high output capacity, compact dimensions and efficient fanless cooling. Moreover, its adjustable 24V output provides flexibility for different low-voltage systems.

Built-in electrical protection, a durable metal enclosure and multiple output terminals also simplify professional installation. Therefore, the LRS-200-24 offers a practical power solution for contractors, panel builders, equipment manufacturers and system integrators.
