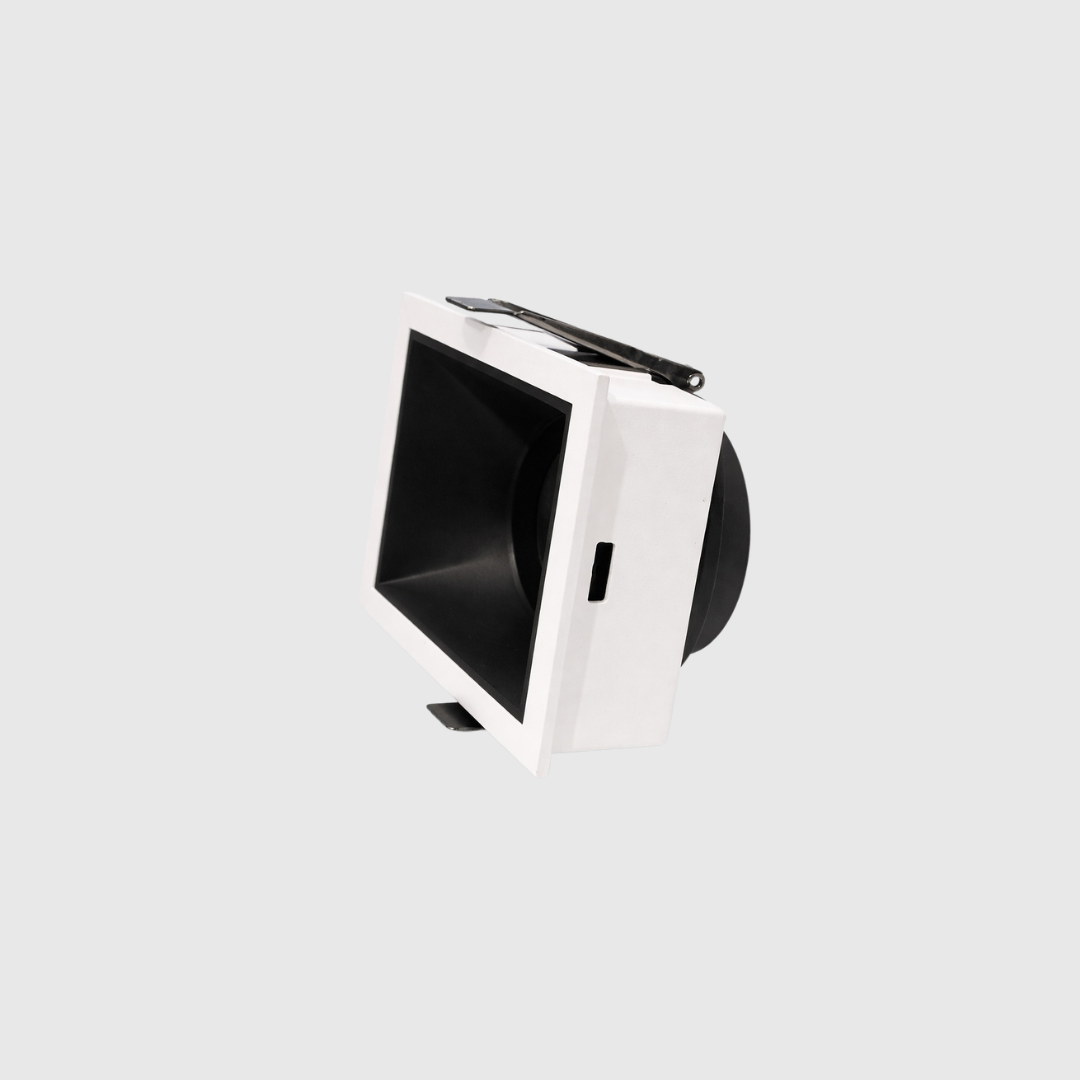

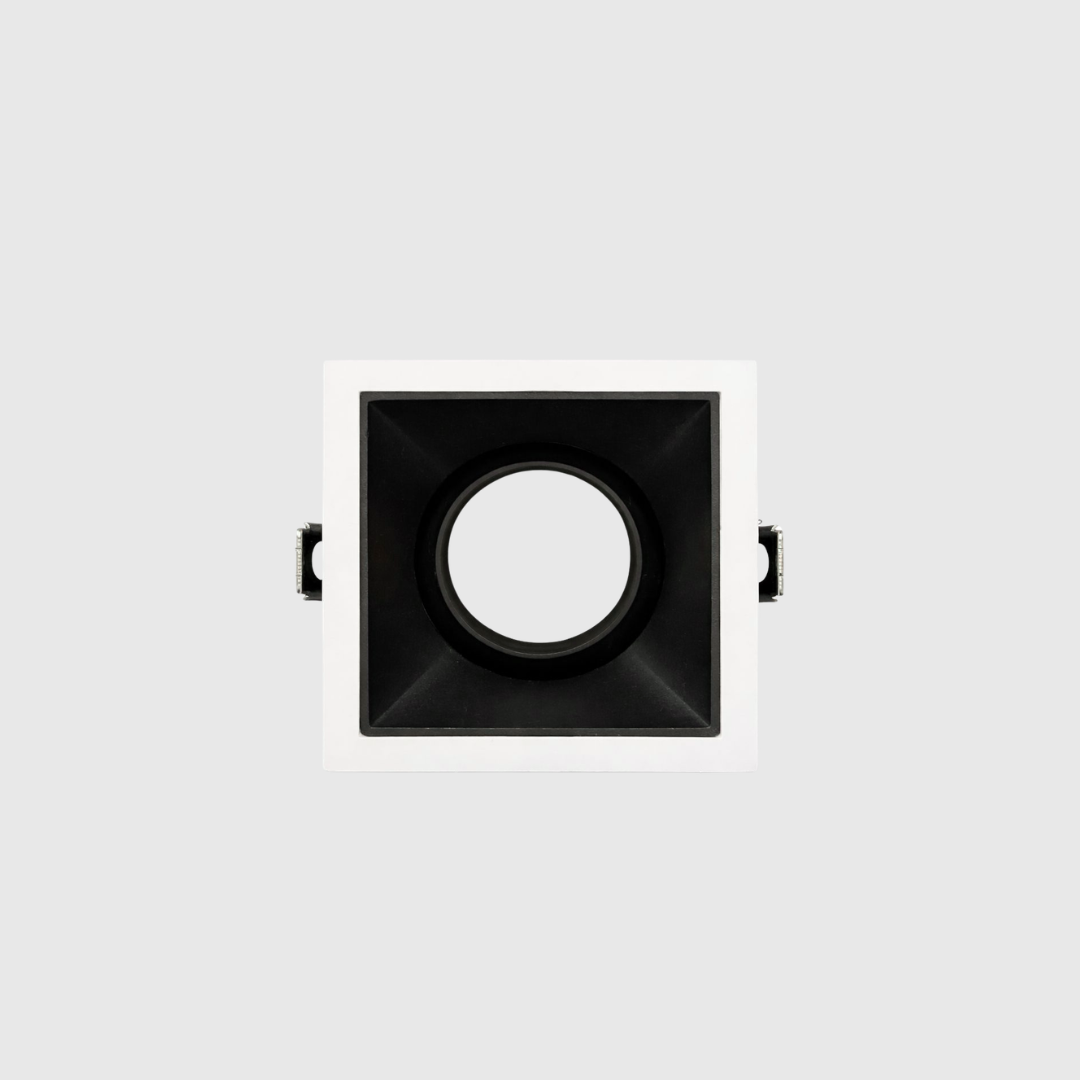

ORIX Square Anti-Glare Recessed Downlight

Product Description

The ORIX Square Anti-Glare Downlight uses a deep recessed optical design to keep the light source further inside the ceiling fixture. Its square aluminum frame measures 85 × 85 mm, while the dark inner chamber adds depth around the circular light aperture.

The combination of a clean square trim and deep black interior gives the fitting a precise architectural appearance while reducing direct visibility of the light source from common viewing angles.

Deep recessed design

The 45 mm depth is one of the defining features of this downlight.

By positioning the optical opening deeper inside the fitting, the surrounding structure shields the light source more effectively than a shallow-frame design. The black internal surface also reduces distracting reflections around the aperture and creates stronger visual separation between the illuminated area and the ceiling.

This configuration works particularly well in interiors where visual comfort and controlled architectural lighting are important.

85 × 85 mm square frame

The front measures 85 × 85 mm, creating a compact square outline around the circular optical opening.

Its aluminum construction keeps the frame rigid and accurately formed. Meanwhile, the contrasting black internal section gives the fitting a deeper, more technical appearance when installed in a light-colored ceiling.

Ø75 mm cut-out

Installation requires a Ø75 mm ceiling cut-out.

Side spring clips secure the frame inside the ceiling, while the outer 85 × 85 mm trim covers the edge of the opening for a clean finished installation.

The compact dimensions make it suitable for repeated ceiling layouts as well as individual recessed lighting points.

Technical Specifications
