Product Description

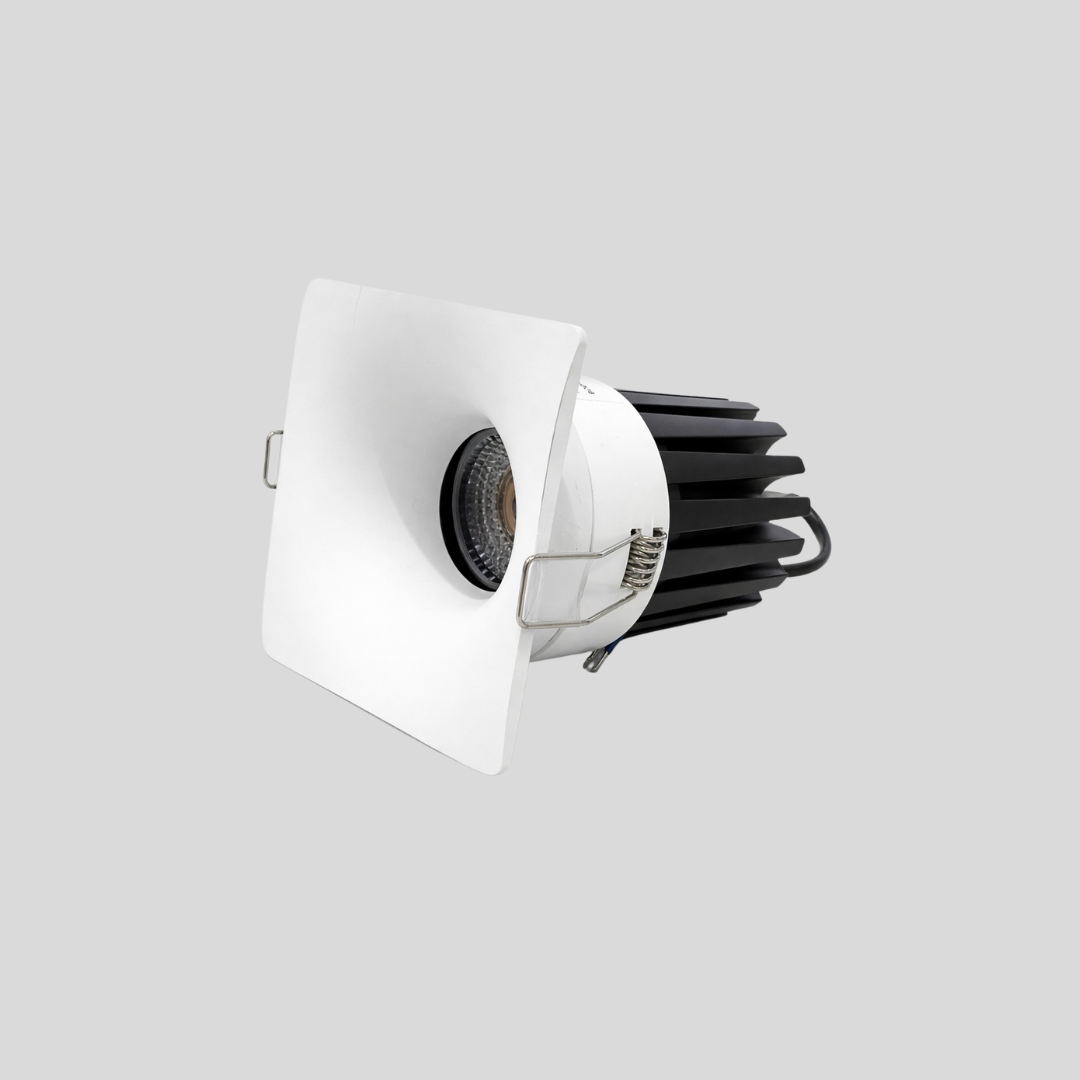

The ORIX Square Trimless Recessed Spotlight creates a clean architectural light point that integrates directly into gypsum ceilings. Its 90 × 90 mm square face, deep recessed optical chamber and plaster construction keep the fitting visually quiet while giving the ceiling a precise, built-in appearance.
Deep recessed light source
The luminaire places the light source deep inside the fitting rather than close to the ceiling surface.
This deep recessed design reduces direct visibility of the light source from normal viewing angles and creates a more controlled anti-glare effect. Meanwhile, the recessed optical cavity adds depth around the beam and keeps the ceiling appearance calm.
The fitting has an overall height of 100 mm, allowing enough depth for the recessed structure.
Seamless trimless finish
Unlike a standard downlight with a visible outer bezel, this model uses trimless installation.
Installers integrate the gypsum body into the surrounding plaster ceiling and finish the surface around it. Afterward, the square opening becomes part of the ceiling architecture instead of appearing as a separate mounted component.
The surface can also be painted to match the ceiling finish, which further reduces the visual boundary between the fixture and the ceiling.

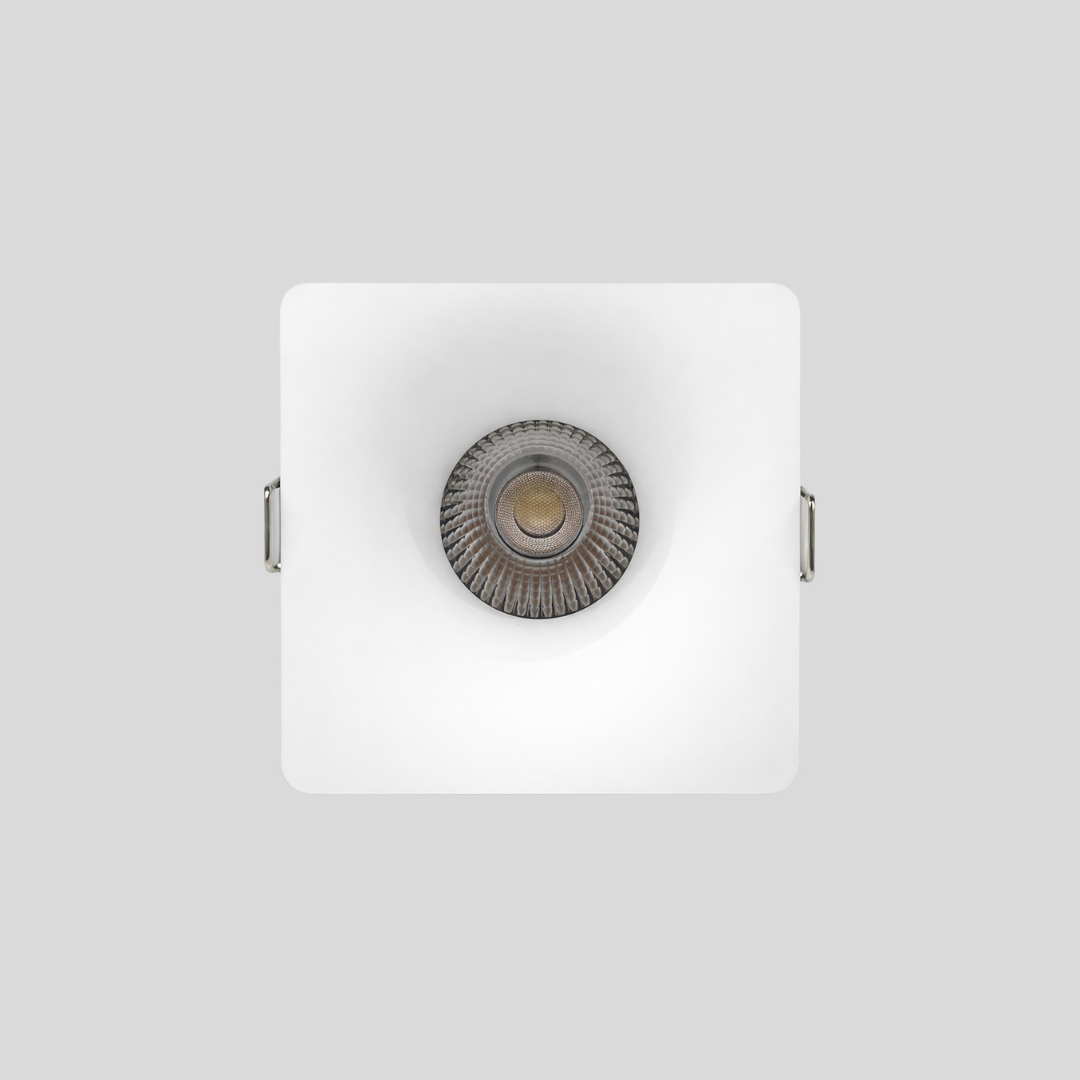

90 × 90 mm square opening
The visible front measures 90 × 90 mm.
Its square geometry works well in organized architectural layouts, particularly when several recessed lights follow ceiling lines, corridors or interior geometry. In addition, the compact aperture keeps attention on the light rather than the frame.
Gypsum construction
The body uses plaster gypsum, making it suitable for integration into gypsum-board ceiling systems.
Because the fitting becomes part of the finished ceiling surface, careful installation and alignment create the cleanest result. Designers can use individual fittings for focused light points or repeat them across larger ceiling compositions.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Architectural Trimless Recessed Spotlight |
| Front Size | 90 × 90 mm |
| Height | 100 mm |
| Shape | Square |
| Material | Plaster Gypsum |
| Installation | Trimless Recessed |
| Design | Deep Recessed |
| Glare Control | Anti-Glare Design |
| Surface | Paintable |
| Ceiling Finish | Can Match Surrounding Ceiling |
| Application | Gypsum / Plaster Ceiling |
