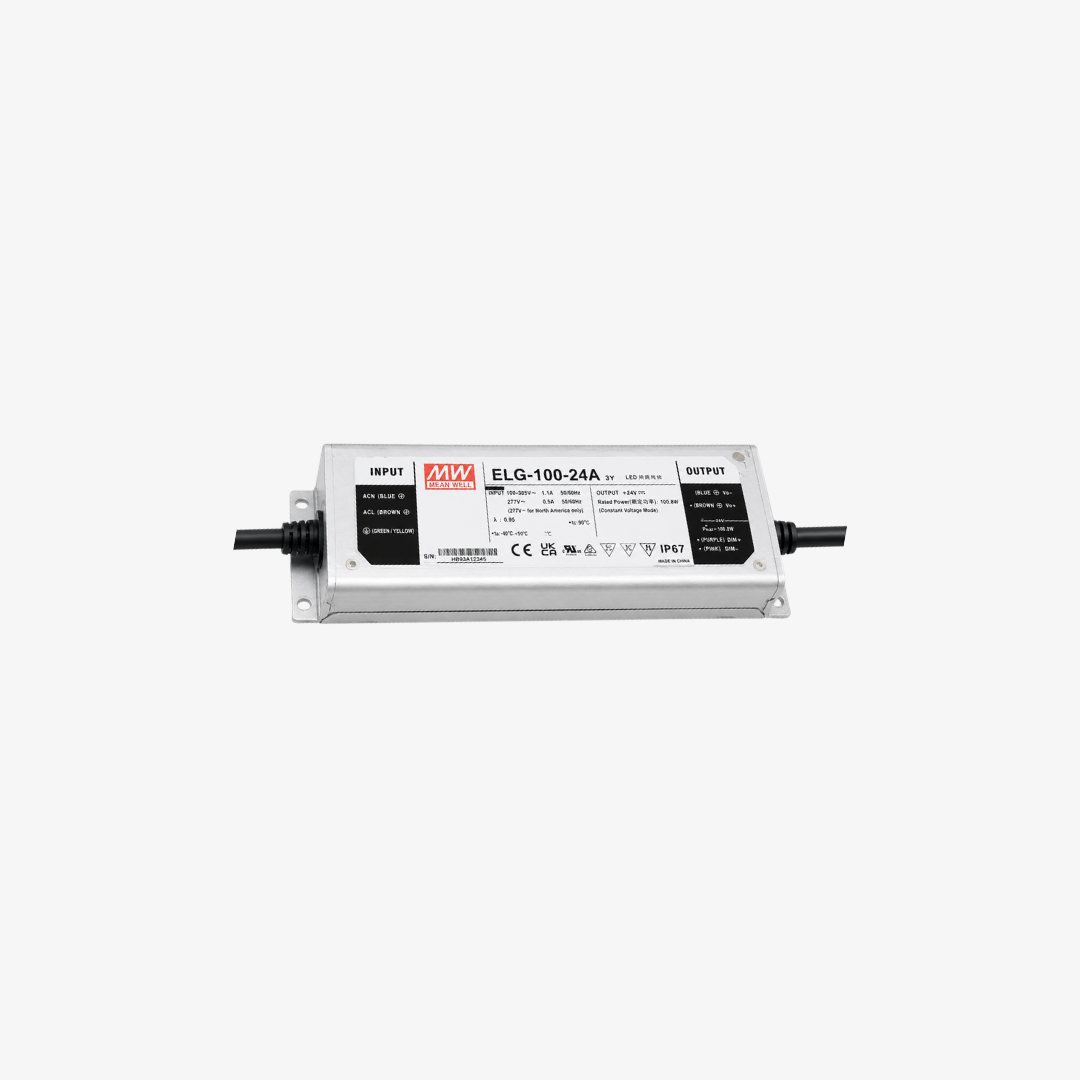

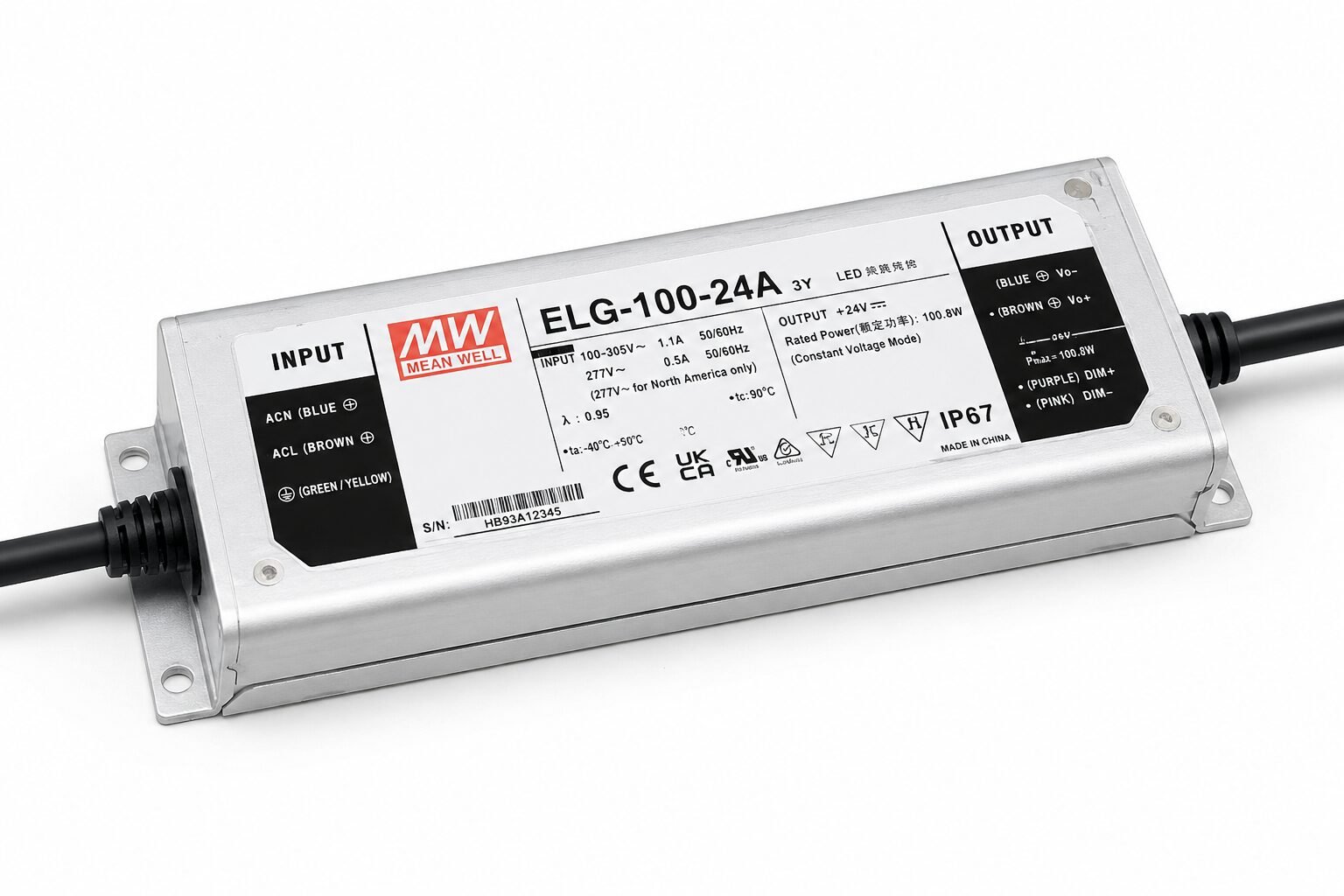

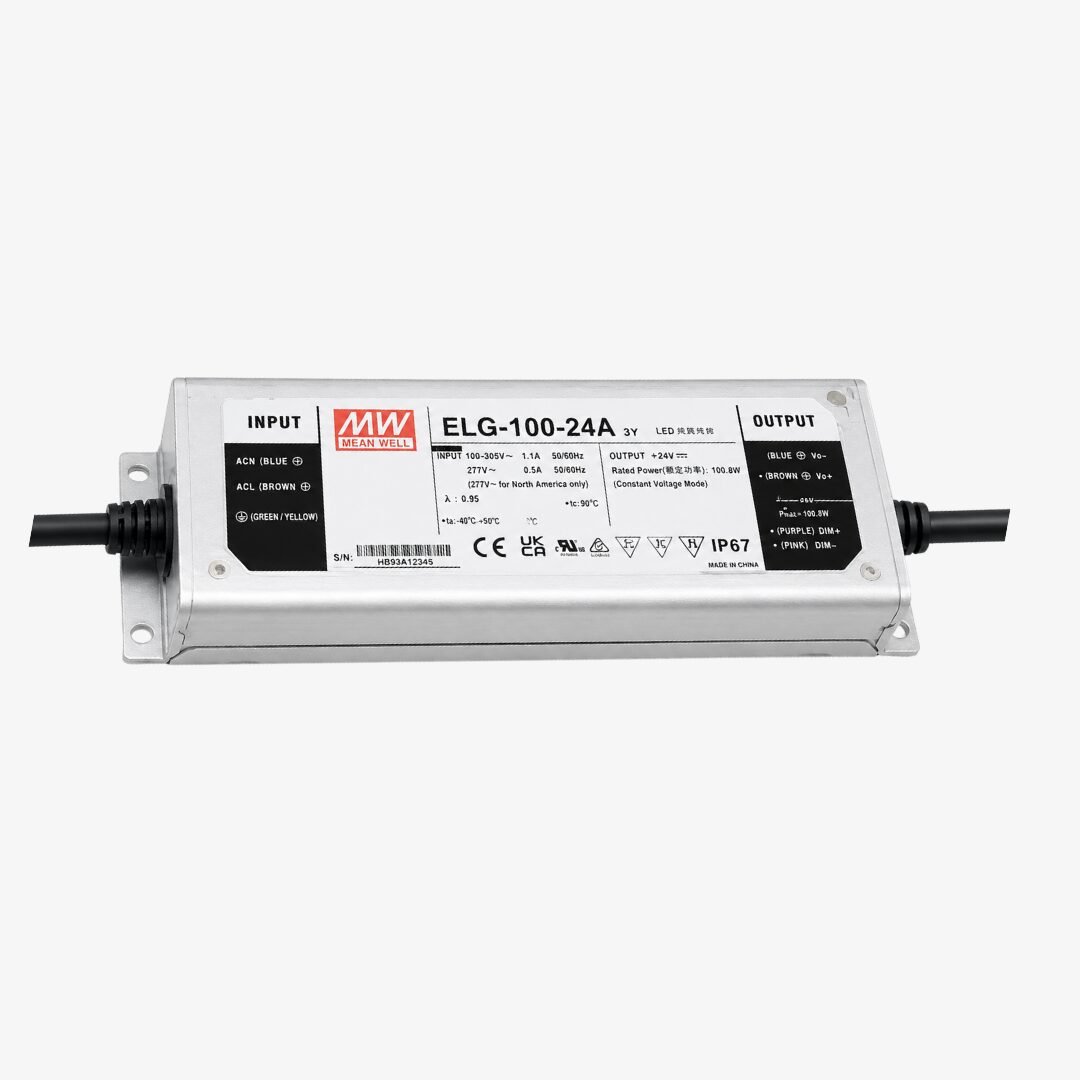

The MEAN WELL ELG-100-24 LED Driver is a professional AC/DC power supply designed for 24V LED lighting systems. It offers a 24V DC output, up to 4A current, and up to 96W output power.
In addition, its wide 100–305VAC input range makes it suitable for commercial, architectural, and outdoor lighting projects.
Stable 24V Output
The ELG-100-24 supplies a stable 24V DC output for LED strips, linear lighting, LED modules, signage, façade lighting, and other 24V lighting systems.
Moreover, the driver supports both constant-voltage and constant-current operation. Therefore, it can control the output when the connected load reaches the current limit.
The constant-current operating range is 12–24V, while the maximum rated output current is 4A.
Strong Metal Housing
A durable metal enclosure protects the internal components and supports effective heat dissipation.
Furthermore, the compact body measures approximately 199 × 63 × 35.5 mm, so installers can place the driver inside lighting housings, electrical cabinets, and service areas.
Depending on the selected version, the ELG series also offers IP65 or IP67 protection for indoor and outdoor lighting installations.
Electrical Protection
The driver includes several built-in protection functions:
- Short-circuit protection
- Over-current protection
- Over-voltage protection
- Over-temperature protection
Additionally, active Power Factor Correction (PFC) improves electrical performance.
The fanless design reduces operating noise and removes moving parts. Meanwhile, no-load power consumption stays below 0.5W.
Efficiency can reach approximately 88%.
Dimming and Control Options
Different ELG-100 versions support different control methods.
Depending on the selected model, options may include:
- Internal voltage and current adjustment
- 3-in-1 dimming
- Timer dimming
- DALI control
Therefore, designers can select the appropriate version according to the lighting control system used in the project.
The MEAN WELL ELG-100-24 LED Driver works well for architectural lighting, commercial lighting, façade lighting, landscape lighting, signage, and other professional 24V LED systems.
