ORIXCO 60W LED High Bay Light with Reflector – 7,400lm, 90° Beam

LED High Bay Light with Wide Reflector

The ORIXCO LED High Bay Light combines a 60W LED light source with a wide aluminum reflector for industrial and commercial spaces that require controlled overhead illumination.

The fixture produces 7,400 lumens and uses a 90° beam angle. Therefore, it spreads the light across a useful working area while maintaining concentration beneath the luminaire.

Its deep reflector also reduces direct visibility of the LED source from typical viewing angles. Meanwhile, the suspended high-bay format makes the fixture suitable for warehouses, workshops, production areas and other high-ceiling spaces.

7,400lm Output from 60W

The 60W LED system produces 7,400 lumens, which corresponds to approximately 123 lm/W.

Moreover, the 90° optical distribution creates a practical balance between coverage and intensity. This beam works particularly well in open industrial layouts where each luminaire needs to cover a useful floor area without creating an excessively narrow pool of light.

For larger projects, lighting designers should coordinate fixture spacing with the mounting height, target lux level and required uniformity. For example, warehouse aisles and production equipment can influence the final luminaire arrangement.

90° Reflector Distribution

The large reflector forms an important part of the fixture.

It surrounds the LED light source and directs the output downward through a 90° beam. As a result, the luminaire suits general high-bay applications rather than very narrow-beam installations.

In addition, the reflector gives the fitting a traditional industrial high-bay appearance while the compact LED engine replaces the larger lamp assemblies used in older high-bay systems.

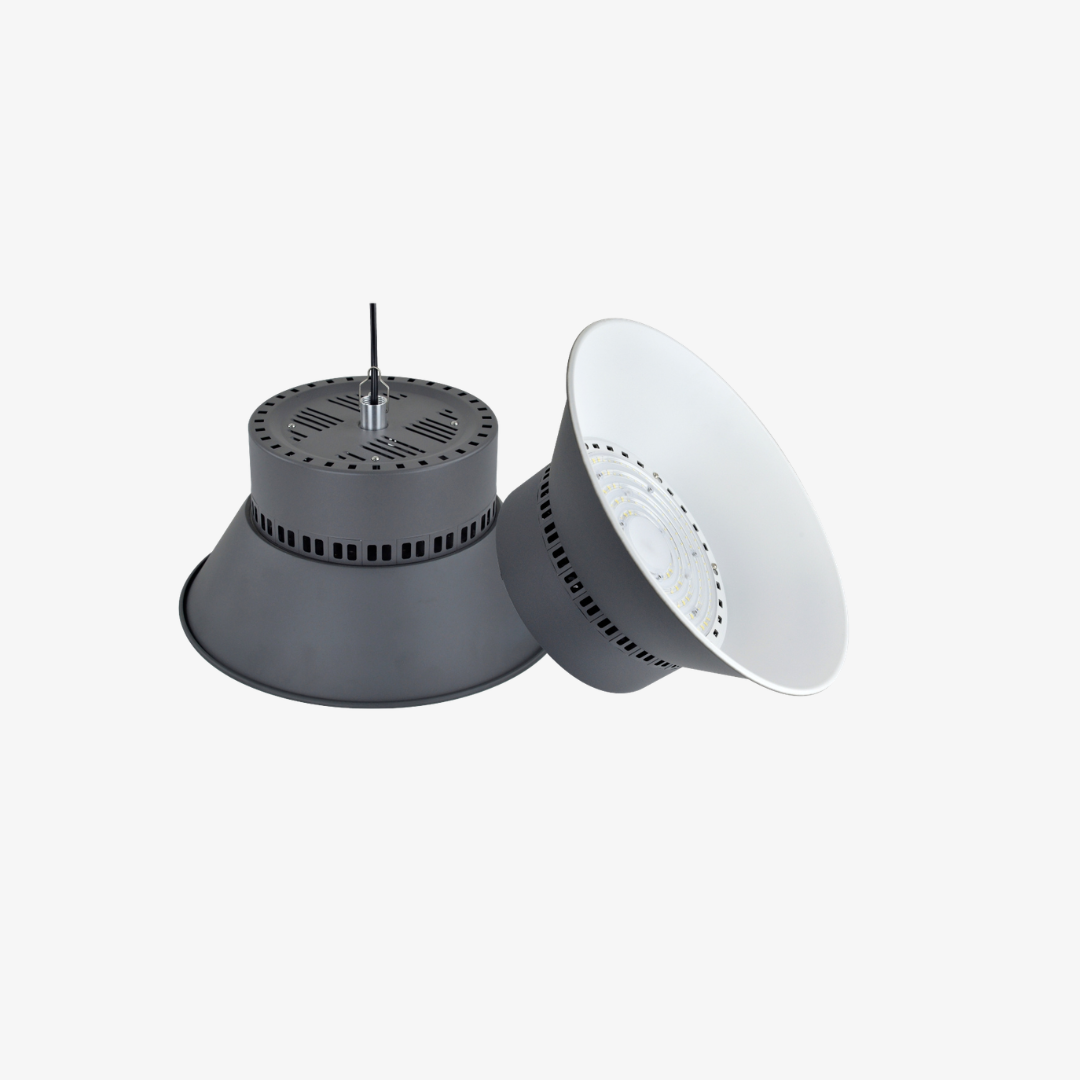

Aluminum Construction

The LED High Bay Light uses an aluminum body and reflector.

The housing includes ventilation openings around the LED section. Therefore, air can circulate around the body while the aluminum structure manages heat from the light source.

The complete fixture measures Ø410 × H210mm, giving it a broad reflector profile with a relatively compact upper housing.

CRI >80

The light source has a CRI above 80.

Consequently, the fixture offers suitable colour recognition for general warehouses, workshops, storage facilities and commercial industrial areas where clear visibility matters during everyday work.

AC220–240V Operation

The luminaire operates from AC220–240V at 50/60Hz.

In addition, it includes 4kV surge protection, which adds protection against short electrical surge events within the specified rating.

The combination of 60W power, 7,400-lumen output and 90° distribution makes the fitting suitable for projects that require a moderate-output high-bay rather than a very high-wattage industrial fixture.

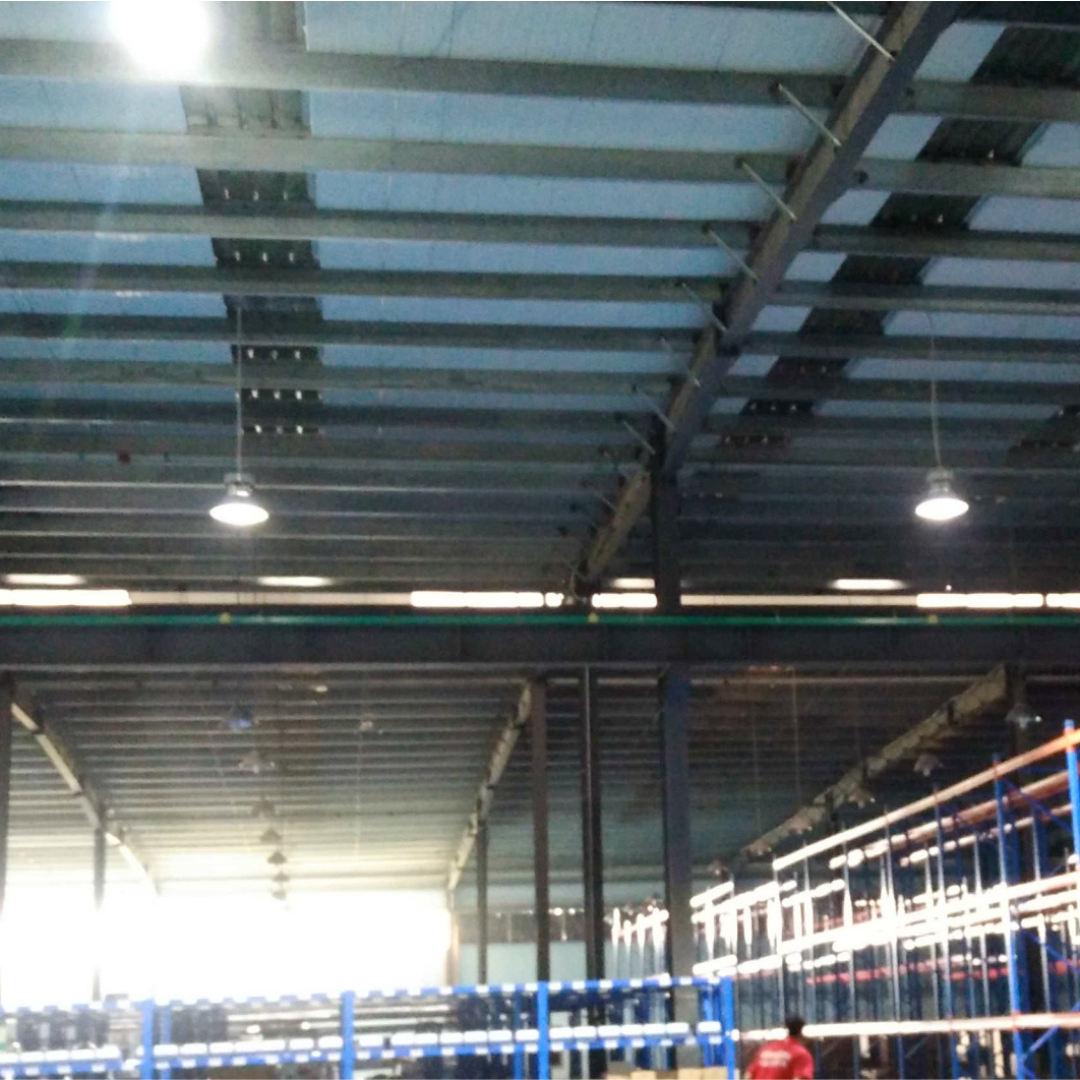

Industrial and Commercial Applications

Contractors can use the ORIXCO high-bay fixture in warehouses, workshops, storage areas, production facilities and other spaces with elevated mounting positions.

Moreover, the wide reflector works well where designers want a more traditional high-bay appearance together with an LED light source.

Explore more ORIXCO lighting products for industrial and commercial projects.

For information about international electrotechnical standards, visit the International Electrotechnical Commission.

Technical Specifications
