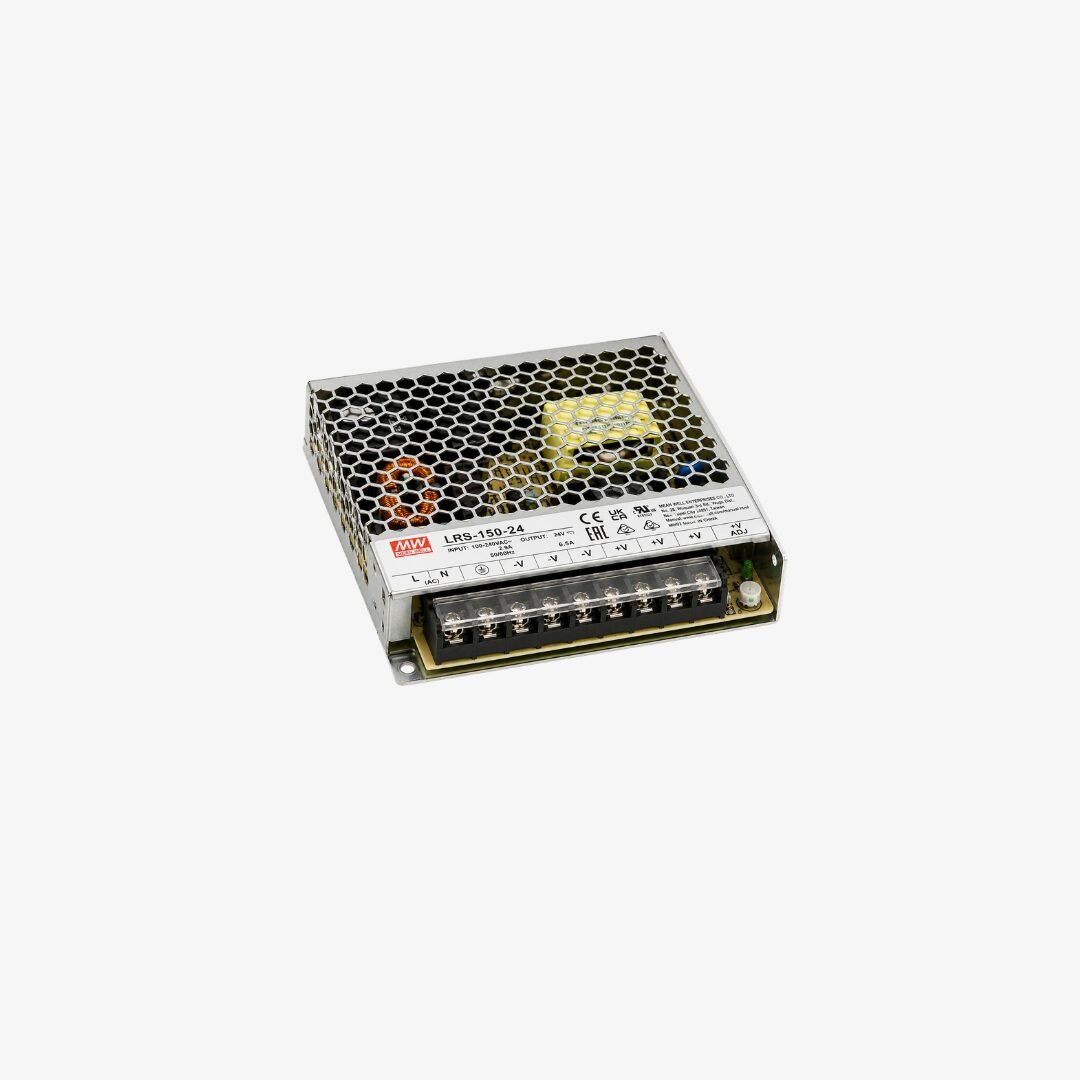

MEAN WELL LRS-150 Power Supply

LRS-150 Power Supply Overview

The LRS-150 Power Supply from MEAN WELL delivers stable 24V DC power for industrial automation, control panels, electrical machinery and compatible low-voltage equipment. The LRS-150-24 model provides up to 6.5A rated current and 156W output power, making it suitable for systems that require dependable power in a compact enclosure.

Moreover, the unit features a 30mm low-profile design. Therefore, installers can integrate it into equipment cabinets, control boxes and machinery where installation space remains limited.

Reliable 24V DC Performance

The LRS-150-24 produces a regulated 24V DC output. In addition, the built-in adjustment control allows installers to fine-tune the output from approximately 21.6V to 28.8V. This adjustment can help compensate for minor cable voltage drops or meet the requirements of compatible equipment.

However, the final output voltage must remain within the approved operating range of the connected load. Installers should always check the required voltage, current and total wattage before completing the connection.

The 24V model reaches approximately 89% typical efficiency. As a result, it reduces unnecessary power loss and heat during normal operation. Its no-load power consumption also remains below 0.5W.

Compact Fanless Construction

The power supply measures approximately 159 × 97 × 30mm. Its ventilated metal enclosure supports heat dissipation through natural air convection. Consequently, the unit operates without a cooling fan and produces no fan noise.

Because the enclosure contains open ventilation slots, installers should place it inside a suitable protected electrical cabinet or equipment housing. The installation must also provide enough open space around the unit for airflow.

Selectable AC Input Range

The LRS-150 series uses a selectable input range of 85–132V AC or 170–264V AC. Therefore, the installer must set the voltage-selection switch correctly before connecting the power supply to the mains supply.

The unit also supports 240–370V DC input when the selector is set to the 230V position. Incorrect switch selection may damage the power supply or connected equipment, so installers should confirm the local supply voltage before energising the system.

Built-In Protection Functions

MEAN WELL equips the LRS-150 series with protection against:

• Short circuits
• Overload conditions
• Overvoltage
• Excessive operating temperature

These functions help protect the power supply and connected equipment during abnormal operating conditions. Furthermore, the short-circuit and overload protection can recover after the installer removes the fault, depending on the protection condition.

Recommended Applications

The LRS-150 Power Supply supports many professional low-voltage applications, including:

• Industrial automation machinery
• Electrical control panels
• Mechanical equipment
• Electronic instruments
• Security and access-control systems
• Display and signage equipment
• Monitoring systems
• Compatible 24V LED installations
• Commercial equipment
• Household appliance systems

Its compact dimensions, adjustable output and fanless operation make it a practical choice for equipment manufacturers, electrical contractors and system integrators.

Installation Guidelines

First, confirm that the connected equipment requires 24V DC. Next, calculate the total current and power consumption of all connected devices. The load must remain within the power supply’s rated 6.5A and 156W limits.

Then, set the input-voltage selector to match the local mains supply. After that, connect live, neutral and protective earth according to the terminal markings. Connect the positive and negative DC output terminals with the correct polarity.

Finally, secure the unit firmly and maintain sufficient ventilation around the enclosure. Correct wiring, proper airflow and accurate load selection will help the power supply deliver reliable long-term performance.

The official specifications list an operating range from -30°C to +70°C, although output derating applies at higher temperatures. MEAN WELL also provides a three-year manufacturer warranty, subject to its warranty conditions.
